52 13 Remove and install/replace seat height adjustment lever on left or right front seat (from 07/2014)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 298 505

IMPORTANT:

Microencapsulated screws must be coated with Loctite if they are to be reused
Screw connection must be completed within 20 min. (start of harden)
Microencapsulated screws must not be retightened.
Thread of nut must be cleaned beforehand in event of repeated use

Removal:

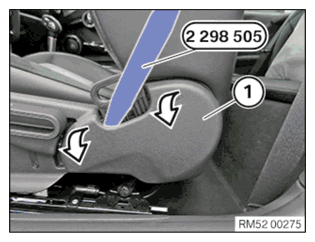

Unclip cover (1) with special tool 2 298 505.

Fig 1: Removing Cover With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

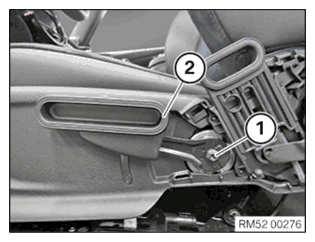

Release screw (1) and remove lever (2).

Fig 2: Removing Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position lever (2) and tighten screw (1).

Tightening torque 52 10 3AZ .

Fig 3: Tightening Lever Screw

Courtesy of BMW OF NORTH AMERICA, INC.

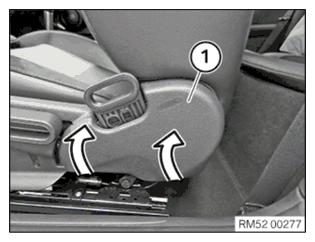

Insert cover (1) at bottom and engage in upwards direction.

Fig 4: Inserting Cover At Bottom

Courtesy of BMW OF NORTH AMERICA, INC.
