Removing and installing fuel tank (gasoline US 53L) (Cooper)

Preliminary work needed:

Extract FUEL from fuel tank.
Remove UNDERBODY PLANKING on left and right.
Remove EXHAUST SYSTEM .
Remove heat shield.
Remove rear left WHEEL ARCH TRIM .
Remove REAR SEAT .

Removal:

Turn the sealing cap of floor panel (2) on plastic tabs (1) in the arrow direction.

Remove floor panel sealing cap (2).

If unscrewing is not possible, destroy the floor panel sealing cap (2) and replace it.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

To unlock/lock or disconnect/connect the fuel line with a quick connector, no tool must be used.

To unlock snap fastener (1) on the fuel line, follow the instructions given below.

Courtesy of BMW OF NORTH AMERICA, INC.

Press in locks (1) and (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect fuel lines (1) and (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Press the snap fastener towards the delivery unit. Then press locks (1) and (2) in the arrow direction and detach the snap fastener in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect snap fasteners (1).

Courtesy of BMW OF NORTH AMERICA, INC.

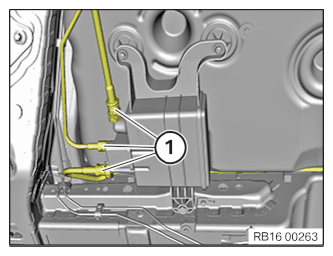

Unhook tank vent line from holders (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1) and detach fuel filler hose (2) from fuel tank.

Courtesy of BMW OF NORTH AMERICA, INC.

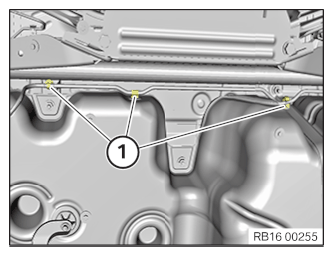

Unlock and disconnect snap fastener (1).

Detach fuel filler neck vent pipe from holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Support fuel tank over a wide area with a suitable workshop jack and secure against falling down!

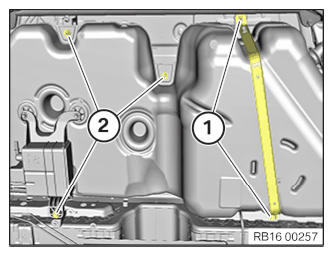

Release screw and nut (1) and remove luggage strap.

Release nuts (2) and lower fuel tank.

Attention!

While the fuel tank is being lowered, the fuel filler neck vent pipe must be led from the wheel well through the body aperture!

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for the installation:

Remount CARBON CANISTER .
Remount the DELIVERY UNIT .

Installation:

Attention!

While the fuel tank is being raised, the fuel filler neck vent pipe must be led into the wheel well through the body aperture!

Raise fuel tank and position and screw in nuts (2).

Tightening torque 16 11 2AZ .

Fit luggage strap and position and tighten screw and nut (1).

Tightening torque 16 11 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position snap fastener (1) and lock.

Hook the fuel filler neck vent pipe into holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount fuel filler hose (2) to fuel tank.

Parts: Hose clamp

Tighten hose clamp (1).

Tightening torque 16 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Hook the tank vent line into holders (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position snap fasteners (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

To unlock/lock or disconnect/connect the fuel line with a quick connector, no tool must be used.

Procedure for installing a new fuel line:

When installing a new fuel line, ensure that lock (1) protrudes.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert fuel line (2) into fuel line (1).

Slide fuel line (2) into fuel line (1) by clicking the first lock (white).

Courtesy of BMW OF NORTH AMERICA, INC.

Lock the red lock (1) in the arrow direction.

Lock (1) can be locked only if the fuel lines are connected correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Check to ensure that snap fastener (1) locks in place correctly.

The snap fastener must engage audibly and perceptibly.

A traction check is not permitted!

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure for installing a previous fuel line:

When installing a fuel line that has already been installed, the red lock (1) is already pressed down.

Courtesy of BMW OF NORTH AMERICA, INC.

Slide fuel line (2) into fuel line (1) in the arrow direction until the two locks lock audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Check to ensure that snap fastener (1) locks in place correctly.

The snap fastener must engage audibly and perceptibly.

A traction check is not permitted!

Courtesy of BMW OF NORTH AMERICA, INC.

Locking tabs (1) and (2) must be locked in place.

Position the snap fastener in the arrow direction and lock it in place.

Attention!

Check the locking mechanisms of the snap fastener for damages and replace if necessary!

Check to ensure that the snap fastener locks in place correctly.

The snap fastener must engage audibly and perceptibly.

Courtesy of BMW OF NORTH AMERICA, INC.

A traction check is not permitted!

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Always replace floor panel sealing cap.

Reusing it poses a risk of leakage.

Coat gasket in area (1) using Carbaflo KSP 105 lubricant (see applicable BMW Electronic Parts Catalog).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount floor panel sealing cap (1).

Lock the sealing cap of floor panel (1) in place on plastic tabs (2) up to the stop in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install UNDERBODY PLANKING on left and right.
Install EXHAUST SYSTEM .
Fit heat shield.
Fit rear left WHEEL ARCH PANEL .
Install REAR SEAT .

Attention!

After installation of fuel tank/prior to first engine start-up:

Check BATTERY GROUND LEAD at fuel filler neck to body for passage. If necessary, clean contact surface between body and fuel filler pipe screw connection.
Fill fuel tank with at least 5 liters of fuel.
