Replacing center silencer (B36, B38) (Cooper)

Only perform this repair work after engine has cooled down.

Injury hazard!

Call on the assistance of a second technician to remove the center silencer.

Preliminary work needed:

• Use a suitable jack to support and secure the center silencer against falling.

Removal:

Loosen the screws along the arrows.

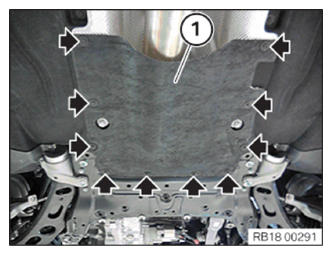

Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over separation point to faulty center silencer and mark.

Secure center silencer against falling off.

Cut through exhaust pipes at marked point with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the screws along the arrows.

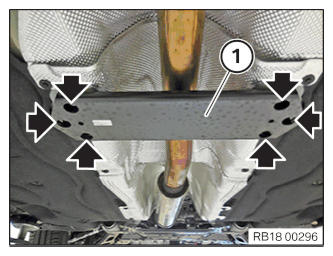

Remove connection carrier (1).

Courtesy of BMW OF NORTH AMERICA, INC.

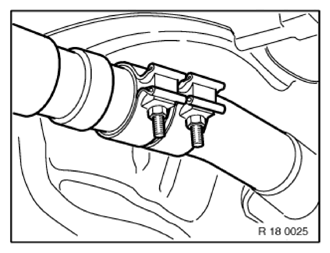

Release clamp (1).

Replace clamp (1).

Parts:  Clamp.

Lower and remove center silencer with assistance of a second technician.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install new center silencer.

Tighten clamp (1).

Tightening torque 18 20 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new center silencer and connect by clamp to rear silencer.

Center clamp and tighten down.

Tightening torque 18 20 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install connection carrier (1).

Tighten the screws.

Tightening torque 18 30 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (1).

Tighten screws along arrows.

Tightening torque 18 30 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Check exhaust system for leak tightness.
