Removing and installing (replacing) audio operating facility

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Preliminary work needed:

Removal:

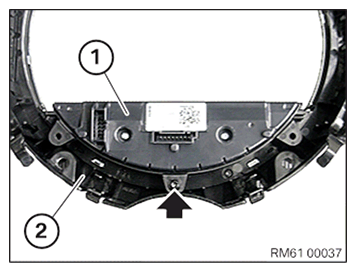

Loosen screw.

Remove audio operating facility (1) from frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

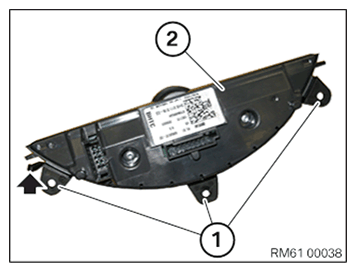

NOTE: Detent and screw lugs (1) on audio operating facility (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Join audio operating facility (1) to frame (2).

Tighten down screw.

Tightening torque 61 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
