Replacing the wiring harness section for injectors and ignition coils (B36, B38, B46, B48) (Cooper)
Preliminary work needed:
- Disconnect BATTERY NEGATIVE LEAD .
- Remove upper FIREWALL COVER .
- Remove ACOUSTIC COVER .
Removal:

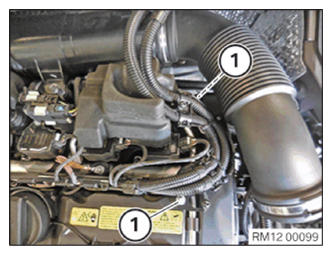

Overview of wiring harness section for injector and ignition coil
| Unlock and disconnect following connectors and lines | Note |
| Unlock and disconnect connector from DME control unit | |
| Unlock and detach connector from ignition coils. | |
| Unlock and detach connector from injectors. |
Release expansion rivet (1).
Slacken nut (2).
Feed out cover (3) and remove.
Loosen the screws along the arrows.
Take out and remove tension strut (1).

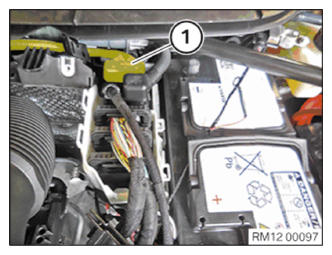

Unscrew nuts (1).
Take out positive battery cables (2) and put them aside.
Slacken nut (1).
Release seal (2).
Feed out positive battery cable (3) and lay to one side.
Pull out the cable duct (1) and put it aside.
Pull out the cable duct (1) and put it aside.
Feed out partition wall (1) and remove.
Unlock the locks along the arrow.
Take out and remove the cover (1) from the guides (2).
Unlock and disconnect all connectors (1) on control unit.
Unlock holder (1) and release.
Loosen screws (1).

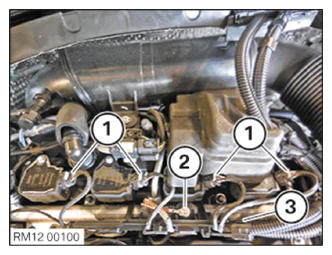

Unlock and disconnect plugs (1).
Slacken nut (2).
Lift wiring harness-section (3).

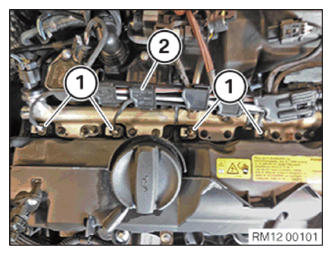

Unlock and disconnect plugs (1).
Take out wiring harness-section (2) and place it aside.
Release wiring harness-section injectors and ignition coils from clips and clamps.
Pull out and remove wiring harness section for injectors and ignition coils.
Installation:
Lay and install wiring harness section for injectors and ignition coils.
All connectors must audibly engage.
Overview of wiring harness section for ignition and injectors.
| Unlock and disconnect following connectors and lines | Note |
| Connect and lock the connector of DME control unit | |
| Connect and lock the connector of ignition coils. | |
| Connect and lock injector connectors. |
Feed in and install wiring harness section (2).
Attach and lock connector (1).
Feed in and install wiring harness section (3).
Attach and lock connector (1).
Tighten nut (2).
Tightening torque 12 52 6AZ .
Tighten down screws (1).
Tightening torque 12 52 7AZ .
Connect holder (1) and lock.
Holder (1) must engage audibly.
Connect and lock connector (1) on the control unit.
Connector (1) must engage audibly.
Insert and install cover (1) in the guides (2).
Lock the locks along the arrows.
Locks must engage audibly.
Feed in partition wall (1) and install.
Thread in cable duct (1) and install.
Thread in cable duct (1) and install.
Feed in and install positive battery cable (3).
Feed in and install seal (2).
Installation note:
Make sure seal (2) is correctly seated.
Tighten nut (1).
Tightening torque 61 21 1AZ .
Insert and install positive battery cables (2).
Tighten nut (1).
Tightening torque 61 21 3AZ .
Insert and install tension strut (1).
Tighten screws along arrows.
Tightening torque 61 21 5AZ .
Feed in and install the cover (3).
Attach expanding rivet (1).
Tighten nut (2).
Required follow-up work:
- Install ACOUSTIC COVER .
- Install upper FIREWALL COVER .
- Connect BATTERY GROUND LEAD .
