Removing and installing/replacing rear left or right coil spring

Special tools required:

2 358 630

IMPORTANT:

Both coil springs on the relevant axle must be replaced only in the event of corrosion breakage!
The spring pads at the top and bottom must also be replaced when replacing the coil springs.

NOTE: The coil spring is located in the applicable BMW Electronic Parts Catalog under the item "Spring table" after the vehicle identification number has been entered and the optional equipments of the car have been selected.

Preliminary work needed:

Remove rear WHEEL .

Removal:

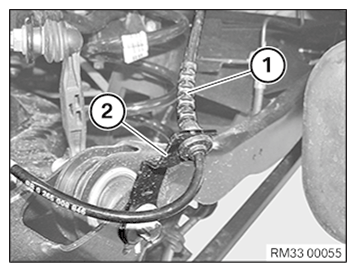

Remove wheel RPM sensor (1) from holder (2).

On the right side, additionally release brake wear indicator cable from the holder.

G11648336

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 2 358 630 with wheel studs to drive flange.

Support trailing arm with special tool 2 358 630 and workshop jack on wheel hub.

G11648314

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) for anti-roll bar link on trailing arm.

G11648256

Courtesy of BMW OF NORTH AMERICA, INC.

Release shock absorber (2) from trailing arm by unscrewing screw (1).

G11145557

Courtesy of BMW OF NORTH AMERICA, INC.

Lower workshop jack with special tool 2 358 630.

Place workshop jack to side.

NOTE: Special tool 2 358 630 can remain on wheel hub.

G11648314

Courtesy of BMW OF NORTH AMERICA, INC.

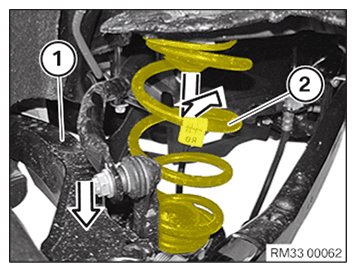

Pull trailing arm (1) down slightly.

Remove coil spring (2).

G11648341

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

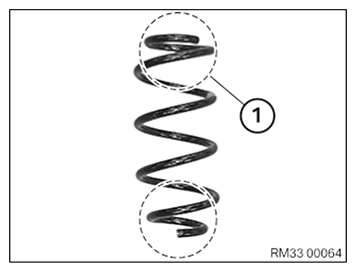

IMPORTANT: Incorrect assembly is possible.

The upper end of the coil spring (1) is flatter.

G11648342

Courtesy of BMW OF NORTH AMERICA, INC.

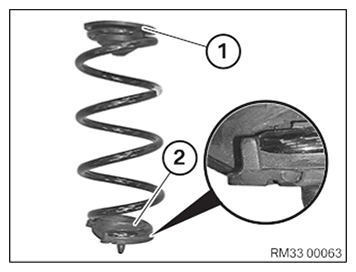

Part : When replacing spring: Replace top (1) and bottom (2) spring pads.

Connect top (1) and bottom (2) spring pads to coil spring.

End stop of bottom spring pad must lie against end of coil spring.

G11648343

Courtesy of BMW OF NORTH AMERICA, INC.

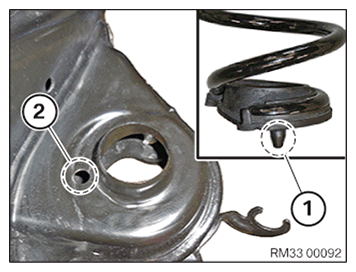

When installing spring, pin (1) of bottom spring pad must be inserted into bore (2).

G11648344

Courtesy of BMW OF NORTH AMERICA, INC.

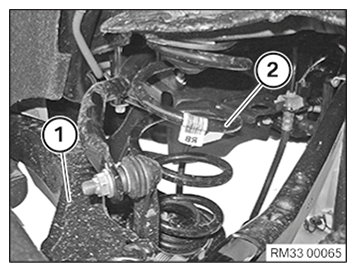

Pull trailing arm (1) down slightly.

Insert coil spring (2).

G11648345

Courtesy of BMW OF NORTH AMERICA, INC.

Insert workshop jack into special tool 2 358 630.

Press trailing arm upwards with special tool 2 358 630 and workshop jack until shock absorber can be screwed to trailing arm.

G11648314

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 33 52 1AZ .

G11145557

Courtesy of BMW OF NORTH AMERICA, INC.

Position anti-roll bar link on trailing arm.

Tighten screw (1).

Tightening torque 33 55 2AZ .

G11648256

Courtesy of BMW OF NORTH AMERICA, INC.

Lower workshop jack and place to one side.

Remove special tool 2 358 630.

G11648314

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install rear WHEEL .
