Removing and installing rear left or right shock absorber

Special tools required:

• 2 358 630

Installation note:

1. All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
2. Retaining elements on chassis and steering parts must be replaced.

Preliminary work needed:

• Remove rear WHEEL .

Removal:

Secure special tool 2 358 630 with wheel studs to drive flange.

Support trailing arm with special tool 2 358 630 and workshop jack on wheel hub.

Courtesy of BMW OF NORTH AMERICA, INC.

Release shock absorber (2) from trailing arm by unscrewing screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Lower workshop jack and relieve coil spring.

Place workshop jack to side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) of wheel arch panel.

Courtesy of BMW OF NORTH AMERICA, INC.

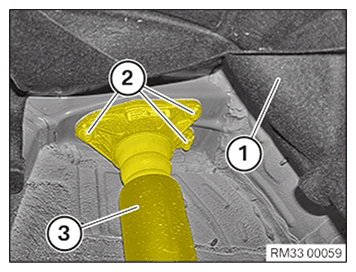

Bend wheel arch panel (1) to one side.

Loosen screws (2).

Remove shock absorber (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap (1).

Check protective cap (1) for damage.

Part  : Replace protective cap (1) if necessary.

Mount protective cap (1).

Bend wheel arch panel (1) to one side.

Align shock absorber (3) to body.

Part  : Replace screws (2).

Tighten down screws (2).

Tightening torque 33 52 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert workshop jack into special tool 2 358 630.

Press trailing arm upwards with special tool 2 358 630 and workshop jack until shock absorber can be screwed to trailing arm.

Courtesy of BMW OF NORTH AMERICA, INC.

Part  : Replace screw (1).

Tighten screw (1).

Tightening torque 33 52 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Lower workshop jack and place to one side.

Remove special tool 2 358 630.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1) for wheel arch panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install rear WHEEL .
