Removing and installing/replacing vibration absorber (AWD)

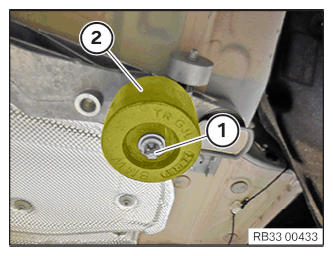

Version A:

Remove screw (1).

Remove hydraulic vibration absorber (2).

Position new hydraulic vibration absorber (2) on cross member.

Part  : Replace screw (1).

Tighten down screw.

Tightening torque 33 31 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

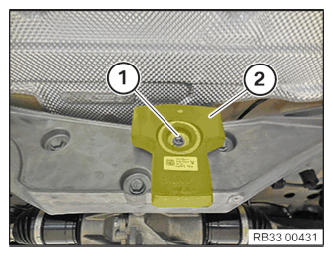

Version B:

Remove screw (1).

Remove vibration absorber (2).

Position new vibration absorber (2) on cross member.

Part  : Replace screw (1).

Tighten screw (1).

Tightening torque 33 31 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
