Replace hydraulic pump of rear axle differential (AWD)

Preliminary work needed:

• Remove the rear axle DIFFERENTIAL CLUTCH .

Removal:

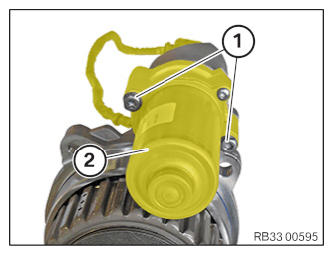

Loosen screws (1).

Remove the hydraulic pump (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

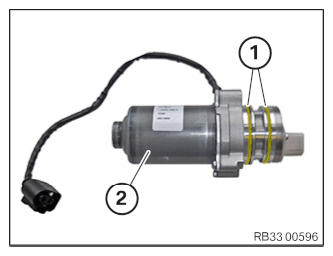

Coat both sealing rings (1) on the new hydraulic pump (2) with oil.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Check installation position. Failure to comply will result in severe damage to the hang-on clutch (suction hole twisted by 180°).

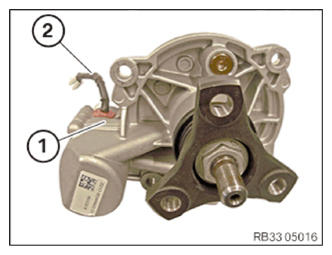

Position hydraulic pump (1). Wiring harness (2) must point up. See figure!

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 33 10 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the rear axle DIFFERENTIAL CLUTCH .
• Performing service function "LMV: Calibrating the pump motor"
