Replacing Outer Tail Panel Section (Cooper Clubman F54)

Read contents of BODY, GENERAL .

Observe procedure of REPAIR STAGE 2 !

STRIP DOWN  vehicle.

The following new parts are required (see applicable BMW Parts Catalog):

1. Tail cowling

Following CONSUMABLES  are required:

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5b	1
Blind rivet N3	22
Punch rivet N4	23
Cleaning agent R1	1
EMC screw	7
Sealant D1
Cavity wax remover

Removal

Operation described predominantly on the left side. Right side identical.

Courtesy of BMW OF NORTH AMERICA, INC.

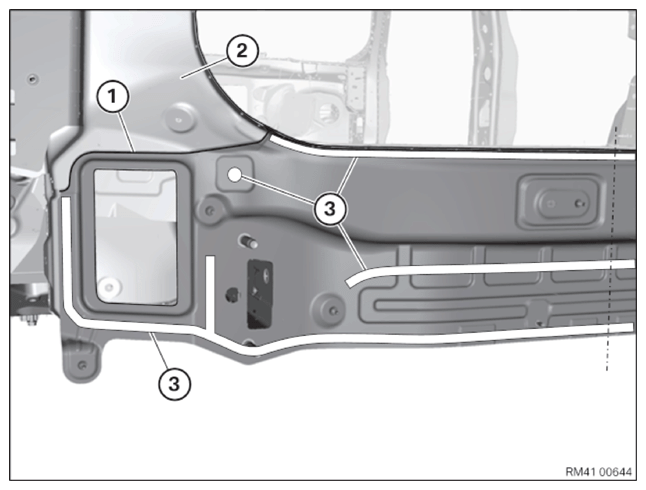

Rip and cut the cut (1) on the component edge of the D-pillar reinforcement (2).

Open welded connections in areas (3).

New Part Preparation

Courtesy of BMW OF NORTH AMERICA, INC.

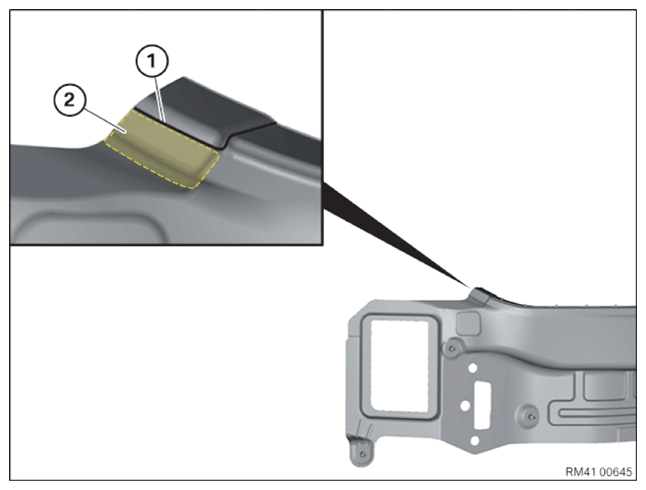

Cut the cut (1) as shown on the schematic diagram. Adapt the area (2) on the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust tail cowling in combination with trunk lid and rear lamps and secure.

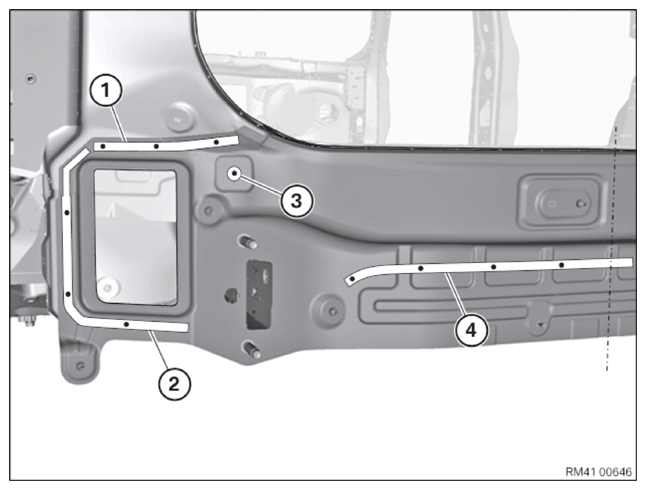

In areas (1) to (4), set bores 4.2 mm dia. for blind rivet.

Area	Number
1	3
2	3
3	1
4	4

Remove new part and deburr holes.

Installation

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the tail cowling and rivet in areas (1) to (4) using N3 blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

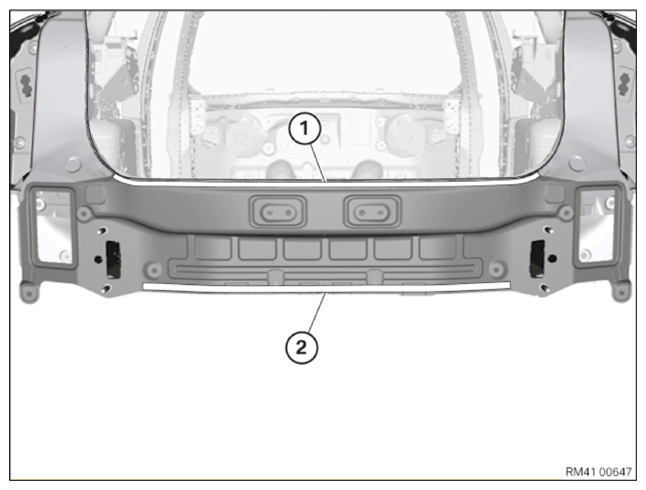

Rivet the new part with punch rivet N4 in areas (1) and (2).

Area	Number
1	12
2	11

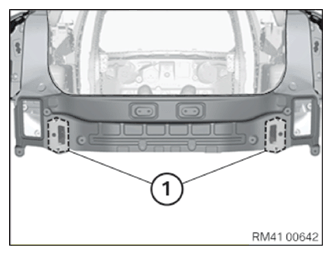

Press tail cowling in areas (1) and remove emerging adhesive.

Then install carrier for bumper trim to secure tail cowling carrier.

Do not use any cleaning agents containing solvents.

Courtesy of BMW OF NORTH AMERICA, INC.

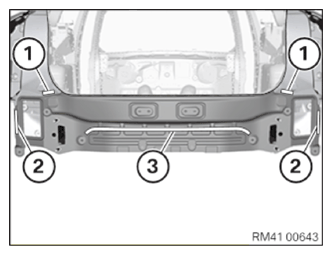

After the adhesive hardens, install 7 EMC SCREWS  in areas shown (1).

Area	Number
1	1
2	1
3	3
