Replace A-Pillar, Outer Left (Cooper Clubman F54)
Observe procedure of REPAIR STAGE 3 !
Read contents of BODY, GENERAL .
For stripping and rebuilding operations, refer to surrounding texts of Commercial Service Data (FRU number 41 21 013).
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only an approved SPOT WELDER for repairs!
The following new parts are required (see applicable BMW Parts Catalog):
- Side frame, outer
Removal

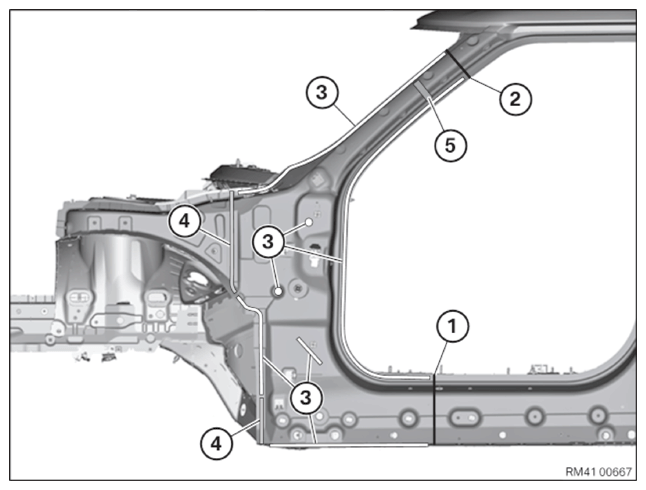

Mark severance cuts (1) and (2) and cut according to schematic diagram.
Open welded connections in areas (3).
RELEASE spot-welded adhesive joints in the areas (4).
Release and remove A-pillar from cavity sealing (5).
New part preparation
Mark severance cuts on new parts according to severance cuts on vehicle and sever.
Prepare REINFORCEMENT PLATES at severance cuts.
Remove superfluous components from new part.
Adjust new part and prepare for joining by welding.
Installation

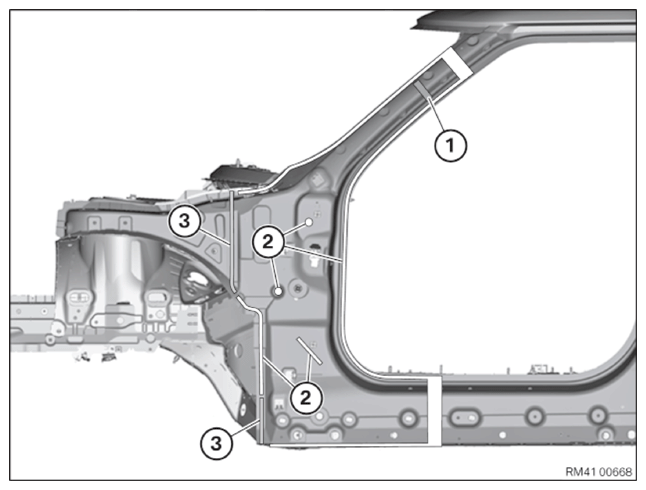

Apply sealing compound to CAVITY SEALING (1).
Install new part and reinforcement plate and weld in areas (2) and (3).
- Vehicles with sliding/tilting sunroof: Make sure water drain hose (1) is correctly installed! (watertightness).
- In vehicles with a normal roof, a grommet is installed instead of the water drain hose.
Please ensure correct installation of the grommet!
