Replacing Rear Left Outer Wheel Arch Section (Rear Quarter Panel Removed) (Cooper Clubman F54)

Read contents of BODY, GENERAL .

Follow procedure for REPAIR STAGE 2 !

For stripping and rigging operations, refer to texts on KSD CD (FRU number 41 14 505).

Use only an approved SPOT WELDER  for repairs!

Following new body parts are required (see applicable BMW Parts Catalog):

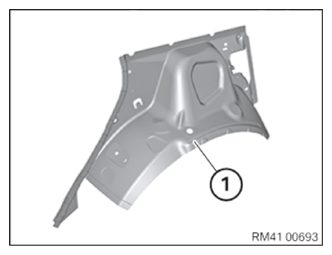

1. Outer wheel arch section, rear left

Courtesy of BMW OF NORTH AMERICA, INC.

Removal

Courtesy of BMW OF NORTH AMERICA, INC.

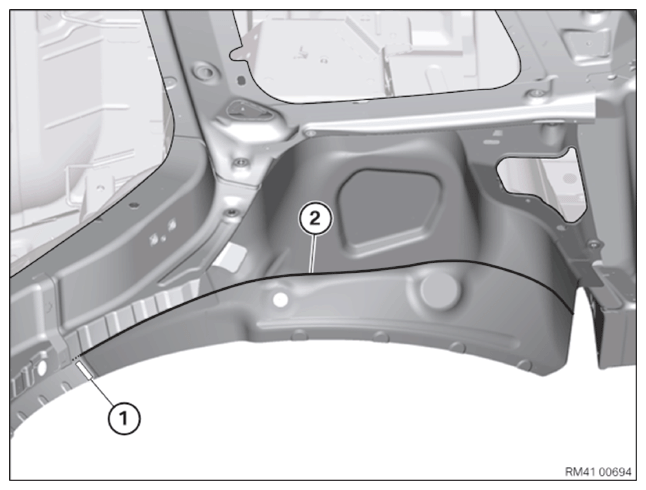

Open welded connections in area (1).

Mark severance cut (2) as pictured and cut.

New Part Preparation

Mark severance cut on new part in accordance with severance cut on vehicle + 15 mm for extra material and cut.

Adjust new part in combination with side frame and prepare for joining through welding.

Installation

Courtesy of BMW OF NORTH AMERICA, INC.

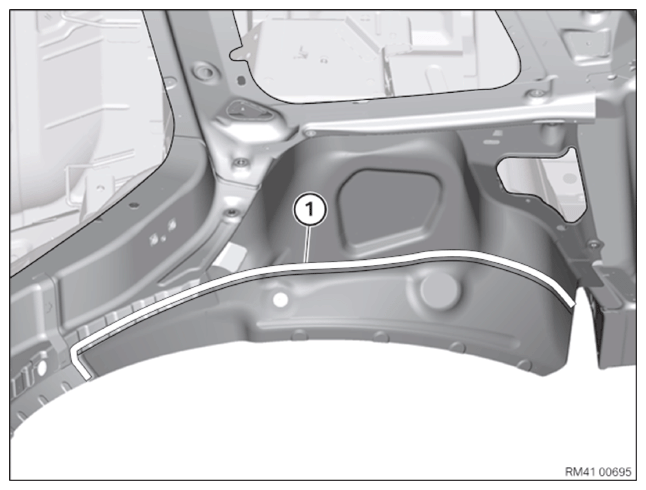

Install new part and weld in area (1).
