Stripping Operations-Replacing Luggage Compartment Floor, Middle (Tail Panel Removed) (Cooper Clubman F54)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove rear cross member (FRU number: 33 31 012)
Lower rear axle differential (FRU number: 33 10)

Release screw (1) and remove exhaust system holder.

Tightening torque 18 20 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Operation is described on the left side. Right side identical.

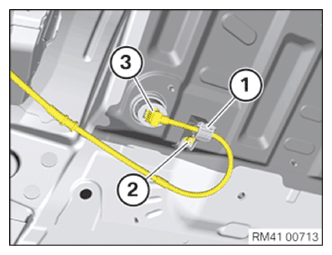

Open holder (1). Slacken nut (2).

Disconnect plug connection (3) and place wiring harness aside.

Courtesy of BMW OF NORTH AMERICA, INC.

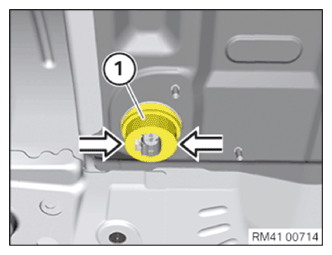

Compress sealing sleeve (1) in the direction of the arrow from both sides and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

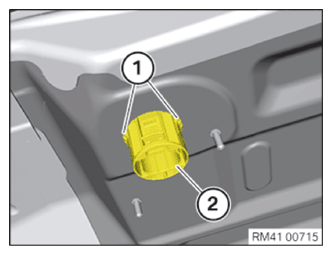

Compress the detents (1) and thread in plug-in contact (2) to the inside.

Courtesy of BMW OF NORTH AMERICA, INC.
