Replacing Left Luggage Compartment Floor (Tail Panel Has Been Removed) (Cooper Clubman F54)

Read contents of BODY, GENERAL .

Observe procedure of REPAIR STAGE 2 !

For stripping and rebuilding operations, refer to surrounding texts on KSD (FRU number 41 12 655).

Following new body parts are required (see applicable BMW Parts Catalog):

1. Luggage compartment floor, left section
2. Wheel well extension, rear left

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

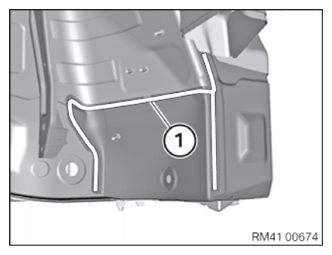

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

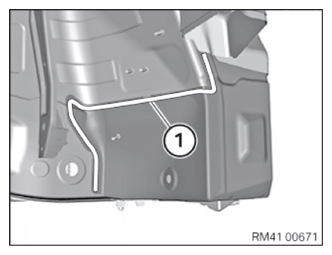

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

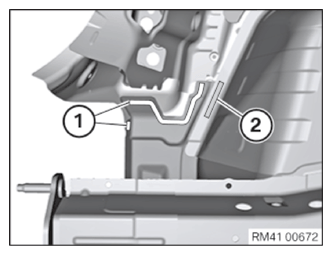

Open welded connections in areas (1) and (2).

Open welded connections for 2 panels in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new parts in combination with tail panel and prepare for joining through welding.

Installation:

Install the new parts and weld them in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts in areas (1) and (2).
