Replacing Engine Mount With Front Right Wheel Arch In Front Of Bulkhead (Cooper Clubman F54)

Observe special procedure for vehicle identification number (order body new part with vehicle identification number if required).

Refer to procedure in repair instructions "ENGINE MOUNT IN FRONT OF BULKHEAD WITH LEFT WHEEL ARCH " and transfer schematically to the vehicle.

Preparation Of New Part:

Courtesy of BMW OF NORTH AMERICA, INC.

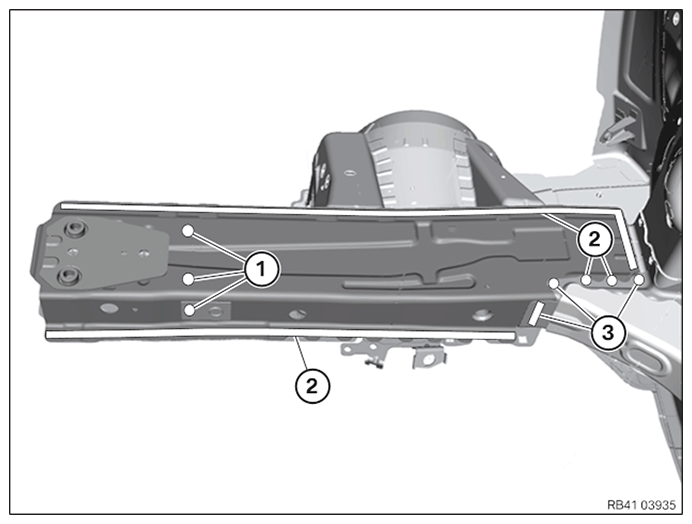

Prepare new parts in areas (1) up to (3) for joints through welding.

NOTE: All 3 panels must be welded to each other in areas (3).
Increase size of holes in areas (3) (open welded connections) top ø 10 mm. Transfer holes to new engine mount internal part and drill.

Installation:

Install new parts and reinforcement plate to fit with alignment bracket or universal fixture.

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts in areas (1) to (3).
