Repair Solution For Straight Shank/Hexagon Rivet Nut (Cooper Clubman F54)

Protective Measures!

• Wear safety goggles
• Wear protective gloves

Attention!

To prevent the material from tapering, do not drill out the rivet head.

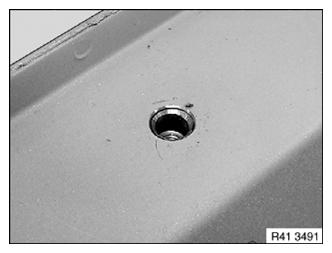

1. Carefully spot-drill rivet head with a larger drill bit/countersink

   Courtesy of BMW OF NORTH AMERICA, INC.

   Attention!

   Avoid paint damage

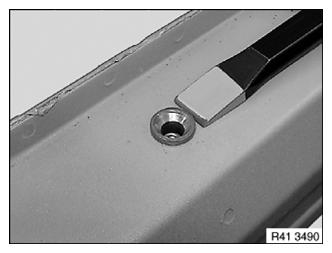

2. Knock rivet head away with a chisel

   Courtesy of BMW OF NORTH AMERICA, INC.

3. Punch through rivet shank into cavity, remove if necessary

   Courtesy of BMW OF NORTH AMERICA, INC.

4. Clean component, eliminate paint damage if necessary

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank can be removed:

   Attention!

   To avoid corrosion, stop chips/shavings with cavity sealant.

   PLEASE OBSERVE THE NOTES ON CORROSION PROTECTION .

   Courtesy of BMW OF NORTH AMERICA, INC.

5. Preserving cavity

   If the rivet shank cannot be removed:

   WARNING: Injury hazard!
   Please observe the NOTES ON CAVITY FOAM .

   Attention!

   To avoid corrosion and rattling noises, stop chips/shavings and rivet nut shank with cavity foam.

   Remove foam remnants with isohexane (cleaning benzene).

1. 5. Stop rivet shank by means of specific foaming
2. 6. Set rivet nut with hand rivet gun
   NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

   Courtesy of BMW OF NORTH AMERICA, INC.

   Hexagon head/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

   Attention!

   Follow manufacturer's operating instructions.

   Make sure rivet nut correctly contacts component.

   NOTE: According to the manufacturer, the tool shown is suitable for threads up to M8 (see S-Gate/dealer's equipment catalog).

   Courtesy of BMW OF NORTH AMERICA, INC.

   Hexagon head/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

   Attention!

   Follow manufacturer's operating instructions.

   Make sure rivet nut correctly contacts component.

   Courtesy of BMW OF NORTH AMERICA, INC.

   NOTE: According to the manufacturer, the tool shown is suitable for threads up to M12 (see S-Gate/dealer's equipment catalog).
