REP-TAT-P-5413-14 Adjusting rear glass slide/tilt sunroof panel

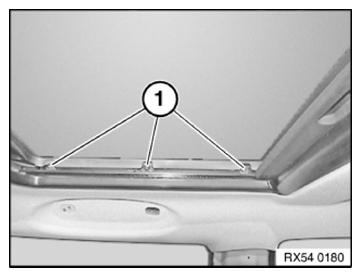

- Undo left/right screws (1) until the glass slide/tilt sunroof lid can just be shifted.
- Shift the glass slide/tilt sunroof panel until the ideal setting is reached.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Panorama glass roof lid to mechanics |
M5
Replace screws. |
4.5 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
