Sunroof - Repair -- Cooper (F54)
>>
54 13 SOFTTOP Operation, Fully Automatic
>>
Replacing gasket on rear glass slide/tilt sunroof panel (Cooper)
>>
REP-TAT-P-5413-01 Remove glass slide/tilt sunroof panel at rear
REP-TAT-P-5413-01 Remove glass slide/tilt sunroof panel at rear
Raise glass slide/tilt sunroof panel at the front.

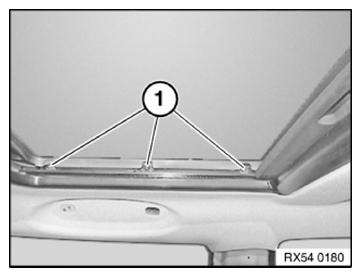

Loosen screws (1) left and right.
Carefully remove the glass slide/tilt sunroof panel upwards.
Courtesy of BMW OF NORTH AMERICA, INC.
