Sunroof - Repair -- Cooper (F54)
>>
54 13 SOFTTOP Operation, Fully Automatic
>>
Removing and installing/replacing gasket for water channel (Cooper)
>>
REP-TAT-P-5413-01 Remove the seal for the water channel
REP-TAT-P-5413-01 Remove the seal for the water channel
Shift front glass slide/tilt sunroof panel fully upwards.

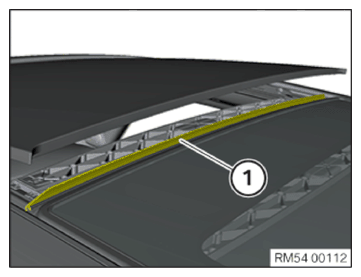

Detach the seal (1) off toward the front.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
