Replacing seat cover for rear seat

Special tools required:

• 52 0 050

Preliminary work needed:

• Remove REAR SEAT .

Removal:

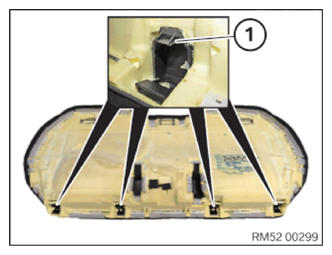

Clip out all covers for Isofix (1).

Courtesy of BMW OF NORTH AMERICA, INC.

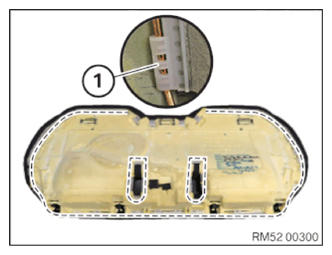

Detach holder (1) all around from seat frame.

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

• Disconnect all clamps in marked area
• Remove seat cover from upholstery
• Remove all remnants of guard controls from cover and padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull cover over upholstery.

Mount clamps.

Parts:

Replace upholstery clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Seat cover

Parts:

Replace upholstery clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach holder (1) all around on seat frame.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in all covers for Isofix (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install REAR SEAT .
