REP-TAT-P-5218-02 Installing the cushion

• Place the seat cover correctly on the cushion.
• Secure all marked trim wires with clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2).

  Parts:  Clamps

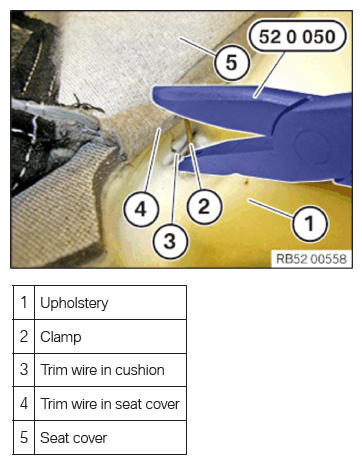

• Insert the clamp (2) with the special tool 0 492 668 (52 0 050).
• Surround the trim wire (3) of the cushion (1) and the trim wire (4) of the seat cover with the clamp (2) and bend the clamp (2) to close it.

Courtesy of BMW OF NORTH AMERICA, INC.
