Removing and installing seat cover with cushion (only Cooper Clubman JCW)

Courtesy of BMW OF NORTH AMERICA, INC.

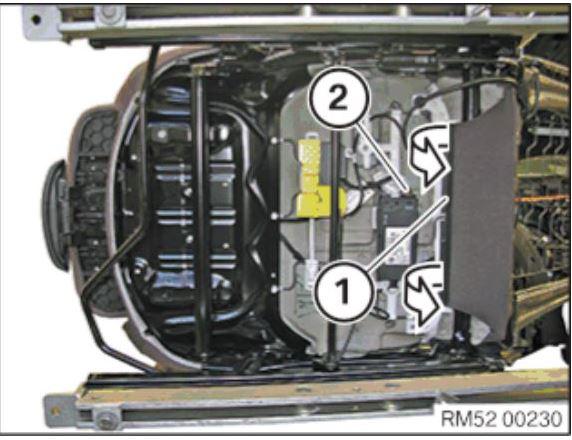

• Unclip the seat cover (1) with the special tool 2 298 505.
• For equipment specification with seat heating: Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

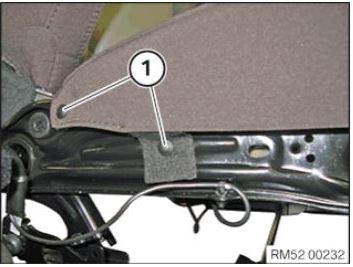

NOTE: Perform steps on right and left side.

• Unclip the clips (1) using special tool 2 998 505.

Courtesy of BMW OF NORTH AMERICA, INC.

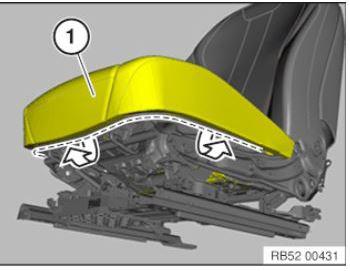

• Using the special tool 2 998 505, unclip the seat cover in the marked area.
• Remove the seat cover with cushion (1) from the seat mechanism.
