Removing and installing backrest seat cover (only Cooper Clubman JCW)

Courtesy of BMW OF NORTH AMERICA, INC.

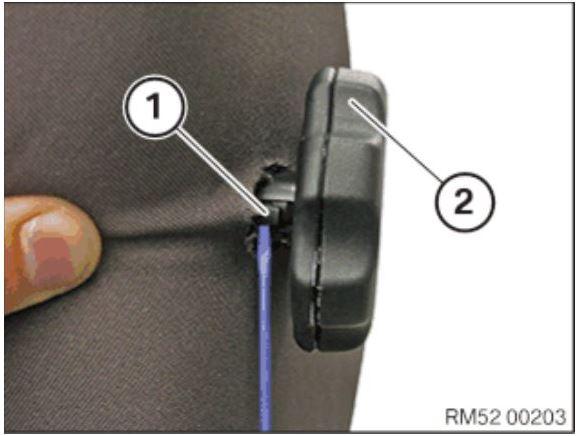

• Carefully press backrest covering inwards until lock (1) of the thumbwheel (2) is accessible.
• Unlock the locks (1) on both sides and remove the thumbwheel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

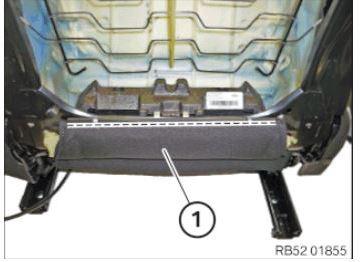

• Using a special tool 2 998 505, unclip the backrest covering (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

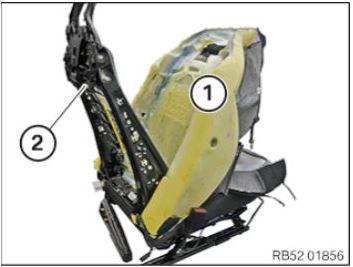

• Position the backrest with cushion (1) as shown and remove the backrest frame (2).
