Replacing lumbar support on front seat (standard, electric) on left or right

Removal:

Detach all luggage straps (1) on the backrest cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Open zipper (1).

Detach backrest cover (1) from the holders (3) and set it down.

Courtesy of BMW OF NORTH AMERICA, INC.

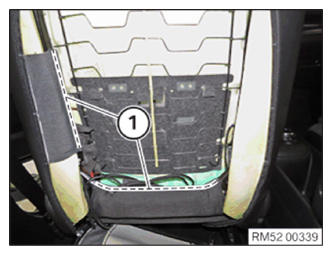

Unhook welt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

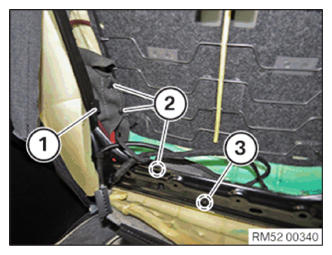

Release cable clip (1).

Release cable tie (2).

Release clip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

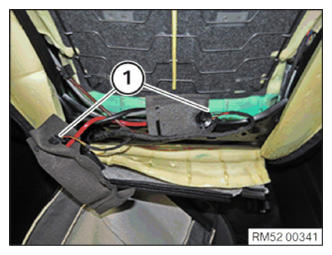

Unlock plug connections (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

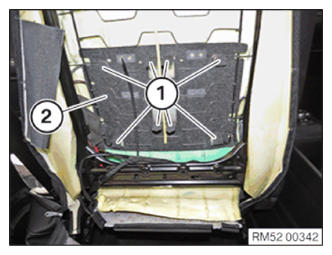

Detach lugs (1) of lumbar support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

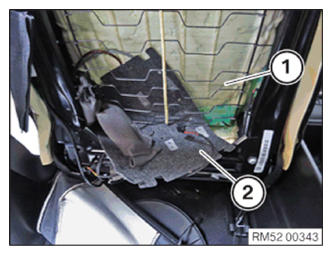

Slightly push the backrest padding (1) towards the front.

Carefully feed out the lumbar support (2) in downward direction between the spring wire and the backrest padding (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slightly push the backrest padding (1) towards the front.

Carefully feed in the lumbar support (2) from the bottom between the spring wire and the backrest padding (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach lugs (1) of lumbar support (2).

Pull the backrest padding towards the rear in position.

NOTE: Air hoses must not be kinked.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cable clip (1).

Fasten cable tie (2).

Fasten clip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach welt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach backrest cover (1) in the holders (3).

Close zipper (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach all luggage straps (1) on backrest cover.

Courtesy of BMW OF NORTH AMERICA, INC.
