Removing and installing/replacing outer cover on left or right front seat (electric)

Removal:

Slide cover (1) on safety belt (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn end lining (2) towards rear.

Carefully pull the retaining clip (1) towards the outside.

At the same time, feed out end lining (2) towards front.

Remove end lining (2) outwards.

Courtesy of BMW OF NORTH AMERICA, INC.

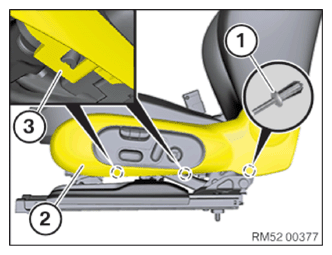

Release expansion rivet (1).

Release cover (2) at bottom outwards from detents (3).

Courtesy of BMW OF NORTH AMERICA, INC.

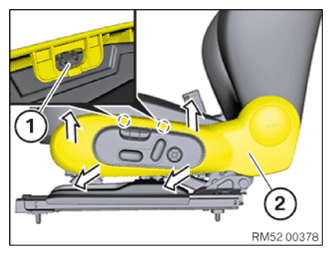

Pull cover (2) at bottom outwards slightly and release upwards from detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

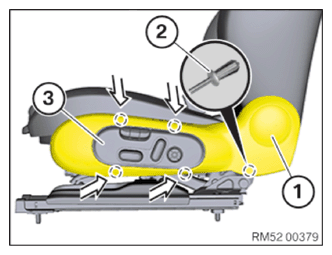

Position cover (1) on front seat from the top and secure with the top and bottom detents.

Position expanding rivet (2).

Make sure that the cover (1) is correctly fitted on the operating unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert strap fitting (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining tab (1) must engage correctly behind the bolt (2).

Attention!

Malfunction if detent is not correct.

Ask a second person to check the detent (two person principle).

Both persons must document that the work has been carried out correctly in the vehicle records.

Observe the subsequent animation.

Animation "Fasten seat belt at the seat"

Slide cover (1) on safety belt (2) downwards.

Pull end lining forward, upward and backward.

If the end lining is not correctly engaged, it cannot be turned on the bolt!

Courtesy of BMW OF NORTH AMERICA, INC.
