REP-TAT-P-5218-01 Remove front seat
Preliminary work
- Remove front STRAP FITTING
Further information is available.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: NOTE airbag safety regulations!
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the BATTERY GROUND LEAD from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: NOTE airbag safety regulations!
- Adjust the front seat fully to the rear.
- Loosen screws (1).
- Adjust the front seat fully to the front.
- Loosen screws (1).
- Disconnecting all battery ground leads
Further information is available.
- See: BATTERY GROUND LEADNOTE: RISK OF DAMAGE
Scratches.
Tools and sharp-edged components can cause scratches.- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.
- Place the front seat fully to the rear and disconnect the plug connector (1).NOTE: RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.- Remove and install heavy components with the aid of another person/other persons.
- Remove the front seat with the assistance of an support person.
- See: BATTERY GROUND LEAD
- Mounting the front seat on the universal seat mount
NOTE:
TECHNICAL INFORMATION
Use of the universal seat mount is recommended for carrying out expert repairs.
Use of the universal seat mount is recommended for carrying out expert repairs.

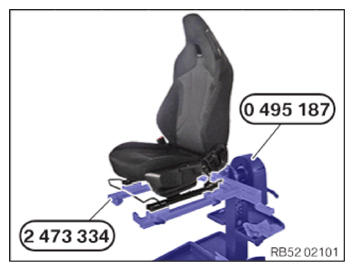

- Fit special tool 2 473 334 onto special tool 0 495 187 (00 2 300)
.CAUTION: Heavy component.
Heavy components can lead to injury or damage.- Remove and install heavy components with the aid of another person/other persons.
- Mount the front seat onto the special tool 2 473 334
.
To ensure a professional repair, it is recommended to use the special tool 0 495 187 (00 2 300) and 2 473 334 .

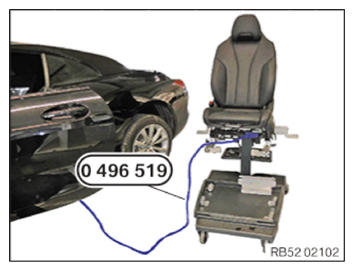

- In order to adjust the front seat in a removed state, the special tool 0 496 519 (61 4 150)
is required to connect with the vehicle wiring harness and the removed front seat.
- Connect special tool 0 496 519 (61 4 150) to the wiring harness of the vehicle and the removed front seat to adjust the front seat.
