Remove and install/replace seat height adjustment lever on left or right front seat
Special tools required:
- 2 298 505
IMPORTANT:
- Microencapsulated screws must be coated with Loctite if they are to be reused
- Screw connection must be completed within 20 min. (start of harden)
- Microencapsulated screws must not be retightened.
- Thread of nut must be cleaned beforehand in event of repeated use
Removal:

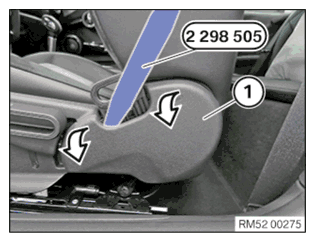

Unclip cover (1) with special tool 2 298 505.
Release screw (1) and remove lever (2).
Installation:
Position lever (2) and tighten screw (1).
Tightening torque 52 10 3AZ .

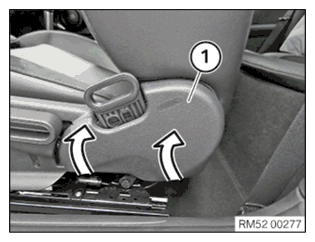

Insert cover (1) at bottom and engage in upwards direction.
