Removing and installing/replacing left or right underbody cover
Work shown on F56 MINI COOPER by way of example, deviations in detail are possible in other models.
Removal:
Loosen screws.
Remove cover (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

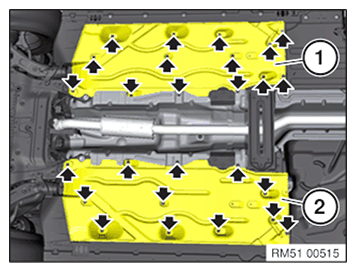

Remove screws and nuts.
Remove covers (1) and (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
Position cover (1).
Tighten the screws.
Courtesy of BMW OF NORTH AMERICA, INC.
|
Position covers (1) and (2).
Tighten bolts and nuts.
Courtesy of BMW OF NORTH AMERICA, INC.
|
