Removing and installing/replacing left or right tension strut

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
Driving without the trailing link is not permitted!

Removal:

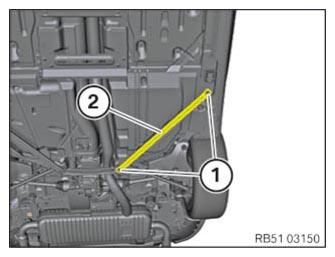

Unscrew the screws (1).

Remove tension strut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install tension strut (2).

Tighten down screws (1).

Tightening torque 51 61 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
