Removing and installing/replacing luggage compartment floor covering

Removal:

On version with storage compartment package:

Lift and remove the removable panel (1) at the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

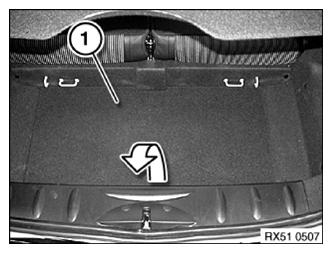

Remove luggage compartment floor covering (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert luggage compartment floor covering (1) opposite to arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

On version with storage compartment package:

Insert the rear removable panel (1) into the guide and put to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
