Removing and installing/replacing front left or right door sill cover strip

Special tools required:

• 00 9 317

Removal:

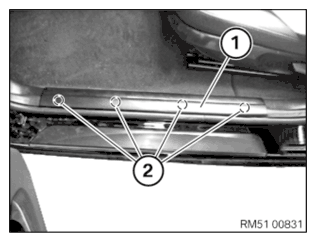

Release door sill cover strip (1) from clips (2) using special tool 00 9 317 and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary lift clip (1) from floor panel (2) and clip on door sill cover strip.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Clip door sill cover strip (1) in clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
