Remove and install/replace (inner) door sill cover strip, rear left or right

Special tools required:

• 00 9 325

When carrying out repair work on trim panels, make sure that the sensitive surfaces are not scratched or damaged.

Preliminary work needed:

• Partially remove REAR SEAT .

Removal:

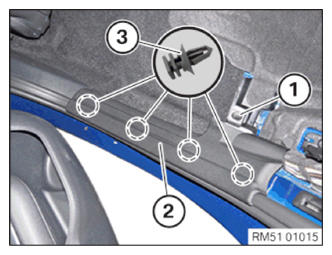

Release fixture (1) from door sill cover strip (2).

Carefully lever rocker panel trim (2) out of clips (3) using special tool 00 9 325 and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement

Remount clips (3).

Carefully engage rocker panel trim (2) in clips (3).

Secure expanding rivet (1) of door sill cover strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR SEAT .
