Removing and installing/replacing cover for instruments

Removal:

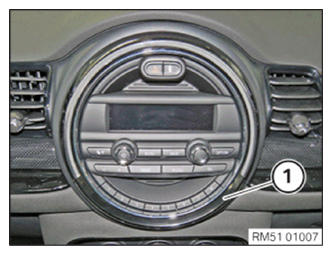

Slightly twist the cover (1) to the left and remove towards the rear.

G13824491Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install cover (1) and lock by twisting to the right.

G13824491Courtesy of BMW OF NORTH AMERICA, INC.
