Removing and installing (replacing) left decorative strip on dashboard

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Removal:

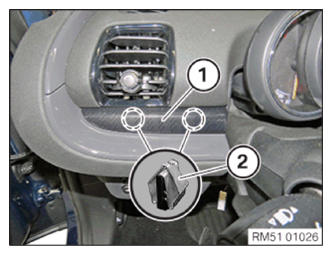

Lever out decorative strip (1) toward the inside and remove beginning from the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

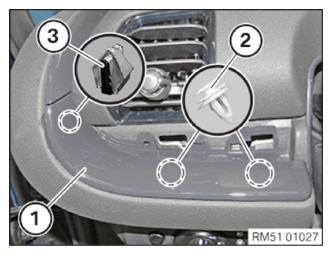

Remove accent strip (1) from the clips (2) and the clamps (3) and remove from the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install accent strip (1) and clip in the clips (2) and the clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Engage decorative strip (1) at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
