Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)
WARNING:
Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems.
IMPORTANT:
Do not use any sharp-edged removal tools (risk of damage to head airbag).
Removal:

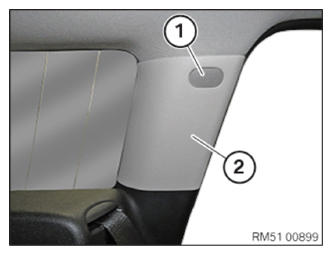

Remove protective cap (1) and release screw underneath.
Remove trim panel (2).
Installation:
Install trim panel (2).
Tighten screw on the trim panel (2).
Tightening torque 51 43 2AZ .
Fit trim (1).
NOTE:
Make sure trim panel (2) is correctly fitted on all adjacent parts.
