Remove and install/replace trim panel for B-pillars (above) left or right

Removal:

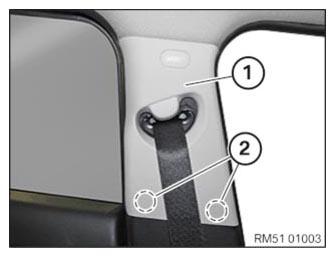

Detach trim panel (1) from clips (2).

Feed out trim panel (1) downwards within the guides and remove.

Complete removal only:

Pull out seat belt straps and remove trim panel for B-pillars.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After complete removal only:

Merge the seat belt strap into the trim panel of the B-pillars.

Feed trim panel (1) upwards into the guides.

Engage trim panel (1) in clips (2).

NOTE: Make sure trim panel (1) is fitted correctly on the edge protection.
