Remove and install/replace left D-pillar trim panel

Removal:

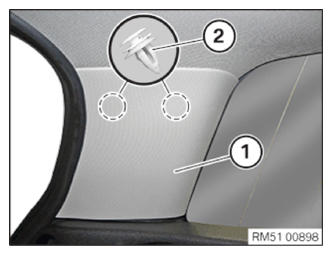

Release trim panel (1) at clips (2) and feed out upwards out of the guides.

G13824428Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Clips (2) must not be damaged or missing.

Feed trim panel (1) downwards into the guides and clip in clips (2).

G13824428Courtesy of BMW OF NORTH AMERICA, INC.
