Detaching and attaching/replacing window frame trim of rear door (front) on left and right

The INSTRUCTIONS  on installation of rubber window seals serve as the basis for these repair instructions and must be observed without fail.

Preliminary work needed:

• Open rear window
• Remove window CHANNEL STRIP  from rear door

Removal:

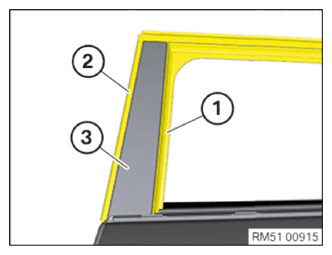

Pull rubber window seal (1) out of window guide.

Pull rubber seal (2) off trim (3).

Courtesy of BMW OF NORTH AMERICA, INC.

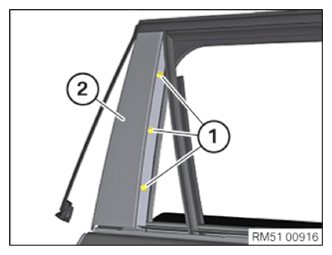

Unscrew the screws (1).

Feed out trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in cover (2).

Tighten down screws (1).

Tightening torque 51 35 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach rubber seal (2) to trim (3).

Coat rubber window seal (1) with lubricant and guide into window guide.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Close rear window
• Install window CHANNEL STRIP  onto rear door.
