Remove and install/replace window frame trim of the front left or front right door

The INSTRUCTIONS  on installation of rubber window seals serve as the basis for these repair instructions and must be observed without fail.

Preliminary work needed:

• Open side window
• Remove outer window shaft COVER STRIP .

Removal:

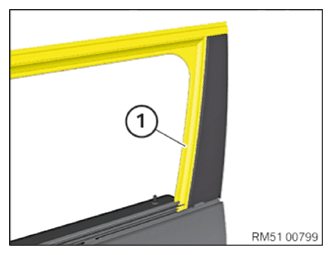

Pull rubber window seal (1) out of rear window guide.

Courtesy of BMW OF NORTH AMERICA, INC.

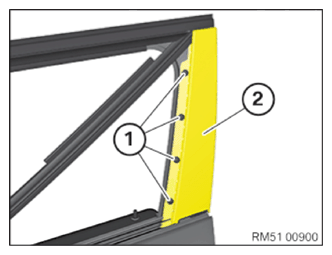

Unscrew the screws (1).

Feed out cover (2) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in cover (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber window seal (1) with lubricant and insert into rear window guide.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work

• Attach outer window shaft COVER STRIP .
