Replace striker for right split door

Removal:

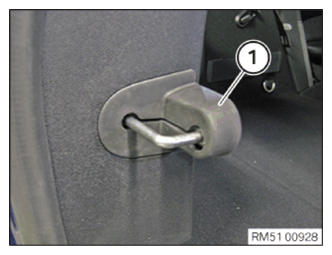

Detach cover (1) outwards.

Courtesy of BMW OF NORTH AMERICA, INC.

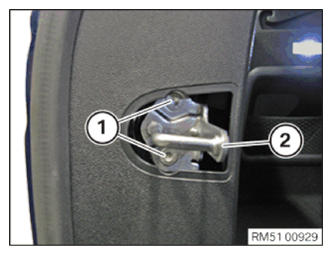

Unscrew the screws (1).

Remove striker (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert striker (2).

Thread on screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting lock striker

The split doors must be provided with all installed parts for correct adjustment.

Check that adjoining body parts are flush in terms of height and correct if necessary.

Set split door using the GAP DIMENSION .

When the split door is closed, the lock striker must not tap or scrape against the door lock. Look out for scratch marks.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) on striker (2).

Tightening torque 51 24 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
