Removing and installing/replacing tailgate lock for left split door

Preliminary work needed:

• Remove TRIM PANEL  for left split door.

Removal:

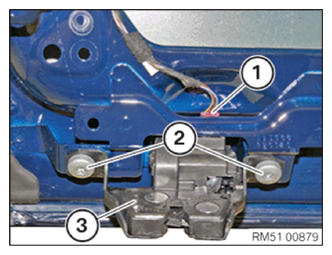

Disconnect plug connection (1).

Undo screws (2) and guide out tailgate lock (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide in tailgate lock (3) and tighten screws (2).

Tightening torque 51 24 5AZ .

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRIM PANEL  for left split door.
