Removing and installing/replacing door handle on split door]

Preliminary work needed:

• Remove TRIM PANEL  for right split door.

Removal:

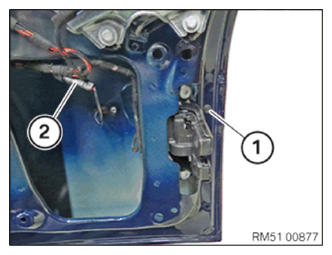

Dismounting sealing cap (1).

Disconnect plug connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

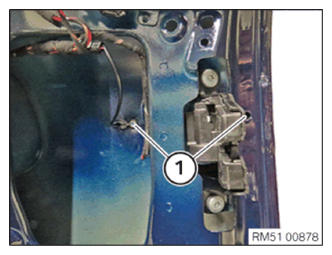

Unscrew the screws (1).

Pull the door handle off toward the back.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount the door handle.

Tighten down screws (1).

Tightening torque 51 24 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount sealing cap (1).

Connect plug connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRIM PANEL  for right split door.
