Detaching and attaching/replacing door handle on left split door

Preliminary work needed:

• Remove TRIM PANEL  for left split door.

Removal:

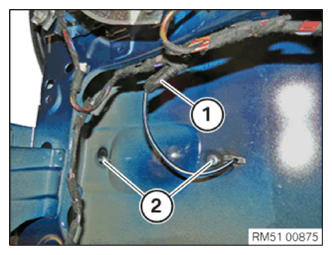

Disconnect plug connection (1).

Unscrew the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

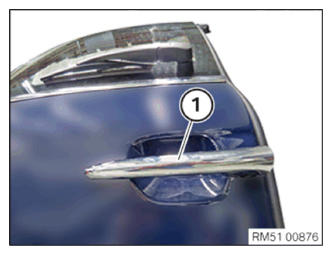

Detach door handle (1) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach door handle (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2).

Tightening torque 51 24 6AZ .

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRIM PANEL  for left split door.
