Adjusting/replacing bump stops
The illustrations show a schematic diagram that must be transferred to the respective vehicle type.
Version 1:
Following parts must not be damaged:
- (1) Bump stop
Adjust stop pad (1) to correct height by turning left or right.
Version 2:
Replace damaged stop pad (see Applicable BMW Electronic Parts Catalog):
- (1) Stop pad with ejector
Press the ejector (1) into the stop pad and turn it in this position approx. 90° to the left with a Phillips screwdriver.
The ejectors (1) are thus locked into the stop pads.
Adjust stop pad (2) to correct height by turning left or right.
Unlock the ejector (1) again after setting has occurred.
Version 3:
Replace damaged stop pad (see Applicable BMW Electronic Parts Catalog):
- (1) Bump stop
Stop (1) 45° counterclockwise.
Pull stop pad (2) upwards.
Close lid slowly until it is at the same height as the side wall.
Open flap and turn stop (1) clockwise.
Installation note:

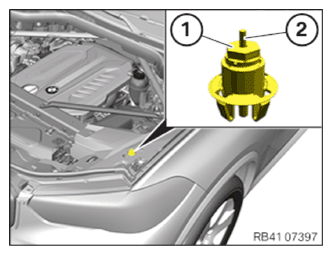

Press the stop pad into the sheet metal part and knock in the expanding pins (3).
Screw in stop pads (1) fully until the pin (2) can be pulled out.
Slowly pull the pin (2) out approx. 5 mm.
Slowly close the hood. The pin (2) is pushed into the stop pad (1) in this process.
Raise hood.
Unscrew stop pad (1) until stop pad is flush with upper edge of pin (2).
