Removing and installing/replacing cover (gasket) on rear door at bottom left or right

Special tools required:

Removal:

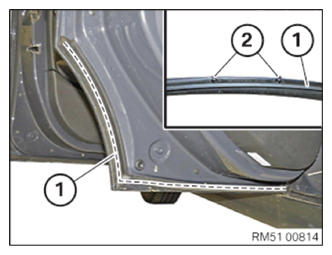

Unclip the clips (2) along the broken line by means of special tool 2 298 505.

Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Clips (2) of cover (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Clip in clips (2) along broken line.

Courtesy of BMW OF NORTH AMERICA, INC.
