Removing and installing/replacing the door lock of the front passenger door

Preliminary work needed:

• Remove SOUND INSULATION  on front door.

Removal:

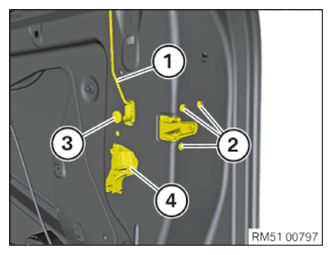

Clip in locking rod (1).

Unlock plug connection and cable clip from inside and disconnect.

Unfasten screws (2 and 3).

Feed out door lock (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) from door lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach Bowden cable (1) in the door lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert door lock (4).

Tighten screws (2) first, then tighten screw (3).

Tightening torque 51 21 1AZ .

Clip in locking rod (1).

Connect plug connection and all cable clips from inside.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install SOUND INSULATION  at front door.
