Removing and installing/replacing the door lock of the driver's door

Preliminary work needed:

• Remove CARRIER  or outer door handle.

Removal:

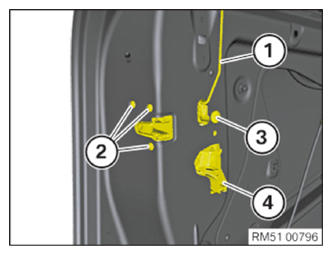

Unclip locking rod (1).

Unlock plug connection and cable clip from inside and disconnect.

Unfasten screws (2 and 3).

Feed out door lock (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount Bowden cable (1) to door lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert door lock (4).

Tighten screws (2) first, then tighten screw (3).

Tightening torque 51 21 1AZ .

Clip in locking rod (1).

Connect plug connection and all cable clips from inside.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install SUPPORT  for outer door handle.
