Removing and installing/replacing front MINI plaque

Special tools required:

00 9 322

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

NOTE: The MINI plaque is damaged during disassembly and must be replaced.

Removal:

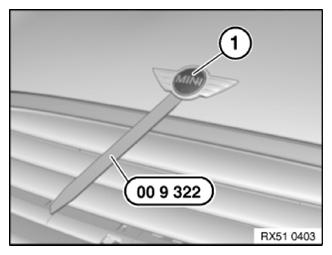

Heat MINI plaque (1) with hot air blower and carefully lever out with special tool 00 9 322.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

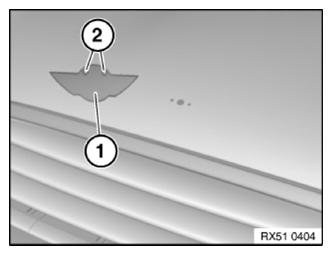

Detach the liner* from the adhesive tape (1) and place the MINI plaque over the guide pines (2) on the front compartment lid and press down firmly.

* Liner is the protective film on a new MINI plaque.

Courtesy of BMW OF NORTH AMERICA, INC.
