Removing and installing/replacing trim (wheel arch) at rear door, left or right

Special tools required:

• 00 9 325

Do not scratch or damage visible surfaces.

Removal:

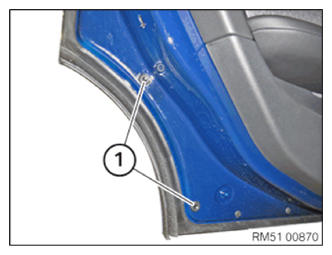

Lever out rubber cover (1) and release screws beneath.

Courtesy of BMW OF NORTH AMERICA, INC.

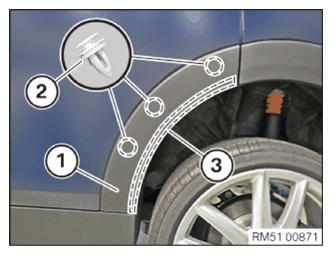

Release wheel arch trim (1) from clips (2) by means of special tool 00 9 325.

Release wheel arch trim (1) and remove adhesive tape (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip wheel arch trim (1) into clips (2).

Press wheel arch trim (1) onto adhesive tape (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws and fit seal rubber covers (1).

Tightening torque 51 13 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
