Removing and installation/replacing emergency horn with tilt sensor (Cooper)

Preliminary work needed:

• For gasoline vehicles:  Partially detach rear right WHEEL ARCH COVER .
• For diesel-engine cars:  Partially remove rear left WHEEL ARCH COVER .

Removal:

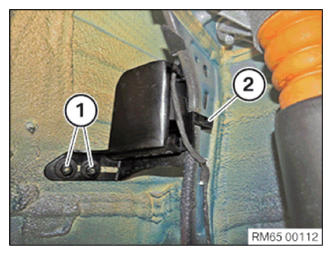

Unscrew nuts (1).

Release detent (2).

Courtesy of BMW OF NORTH AMERICA, INC.

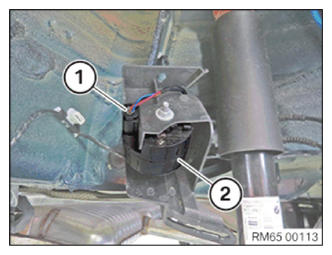

Unlock and disconnect the connector (1).

Remove emergency horn with tilt alarm sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Slacken nut (1).

Remove emergency horn with tilt alarm sensor (2) from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Position emergency horn with tilt alarm sensor (2) correctly on holder (3).

Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join connector (1) to emergency horn with tilt alarm sensor (2) and lock in place.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (1).

Detent (2) must lock correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• For gasoline vehicles:  install rear right WHEEL ARCH COVER .
• For diesel-engine cars:  install rear left WHEEL ARCH COVER .

Replacement:

Carry out PROGRAMMING/CODING .
